Fuji CP6 SMT Nozzle

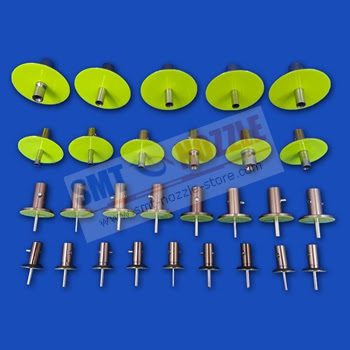

Fuji CP6 SMT nozzle is made of imported high-strength aluminum precision CNC. The nozzle head is made of wear-resistant stainless steel, non-magnetic and static-free; the reflector is flat and flat, the surface is mirror-free, and there is no shadow when imaging; the round pin of the positioning pin is CNC precision Made and heat-treated, wear-resistant and smooth. Every detail is carefully polished from inside to outside.



Fuji CP6 Pick-and-place nozzle model:

Comments

Post a Comment

Popular posts from this blog

How does the nozzle of Samsung placement machine correspond to the material selection

Regarding how to choose the material of the Samsung SMT nozzle , the most encountered problem is that many technicians and customers do not know the component selection corresponding to the Samsung nozzle. Today I will briefly introduce how the material of the Samsung SMT nozzle corresponds to the material Selection. Take the nozzle of Samsung Chip Mounter CP-45NEO / CP-45FV as an example: Samsung CP-45NEO Nozzle Assembly: CN020,CN030,CN040,CN065,CN110,CN140,CN220,CN400, CN400N ,CN750, CN1100 Samsung CP-45FV Nozzle Assembly: TN020, TN030 , TN040 , TN065 , TN140 , TN220 , TN400 , TN750 , TN1100 Suction hole diameter: 0.18mm, 0.28mm, 0.38mm, 0.65mm, 1.4mm, 2.2mm, 4.0mm, 7.5mm, 11mm. Selection principle of suction nozzle: 1. The diameter of the selected nozzle hole cannot be larger than the minimum size of the component. 2. The diameter of the selected nozzle hole should not be too small than the minimum size of the component, and the general proportion is 1:1.2-1.7, which is ...
Read more

Solution to the dropping of nozzle of JUKI mounter ke-2050

Juki KE-2050 nozzle is not directly connected to the placement machine, there is actually another part connected between them-nozzle holder. We installed the nozzle of the Juki placement machine KE-2050 on the nozzle holder, and then installed the nozzle holder on the placement machine. This will cause a problem that the nozzle is easily separated from the nozzle holder while playing. The reasons for the above problems may be as follows, we analyze them one by one: 1. The Juki KE-2050 nozzle holder with the nozzle is worn out during use and the size becomes smaller, which does not match the nozzle holder. At this time, replace the new nozzle holder. Of course, this is only a temporary solution to the problem, and the situation needs further analysis. 2. It is not the problem of the entire nozzle holder, but the inner gasket is worn or dropped in production, and it is sufficient to replace or reinstall a gasket. 3. The cause of the brake pads, there should be a phenomenon of jitter in...
Read more

Why is the black material commonly used for the nozzle of the placement machine?

The SMT placement equipment has now become the mark of our fully automatic production line, and the SMT placement equipment can accurately and quickly place components all rely on the role of the nozzle. When we use the nozzle of the placement machine, we will definitely find that the nozzles are all black. Why should we use black nozzles? To understand this problem, we must first know what role the nozzle has? The nozzle of the placement machine is not only the key part of the placement machine to pick and place the sucked component, but also the background when the camera of the optical vision system takes a picture. It mainly uses the suction effect of the vacuum to suck the component, and Use blowing to put the components adsorbed on the nozzle to the coordinate position of the circuit board. Almost every nozzle will have a reflective background, which is mainly to have a good background when the image is taken, so that the target information can be accurately highlighted during ...
